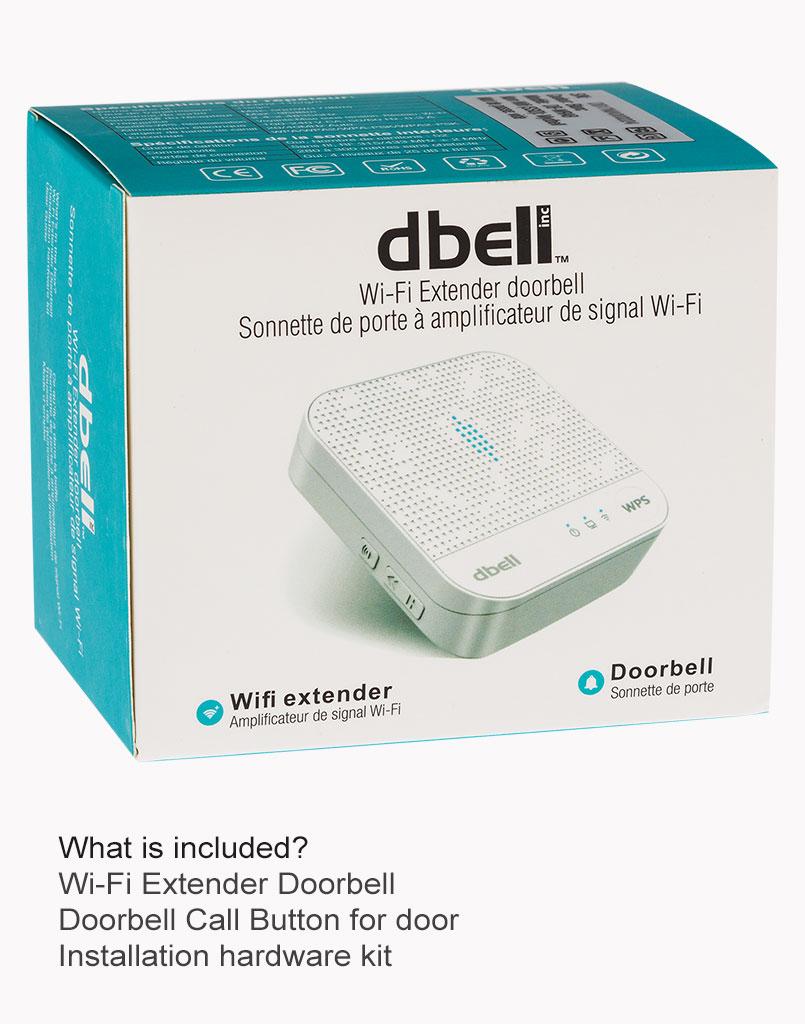

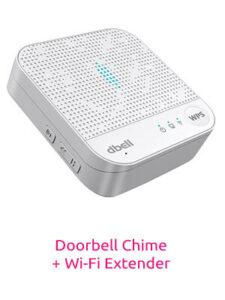

WiFi extender doorbell

Description

WiFi extender doorbell

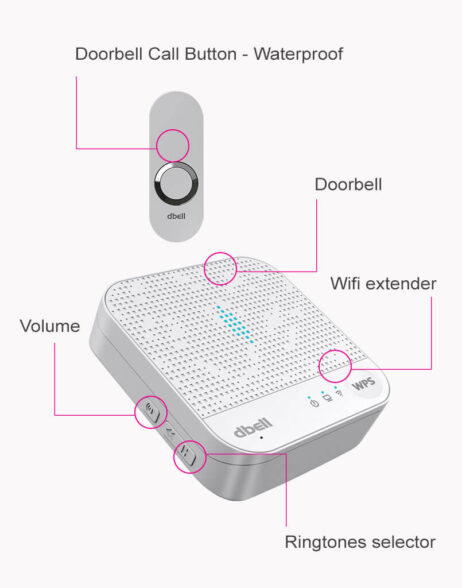

WiFi extender doorbell is a plug-n-play device. If you have lots of Wi-Fi dead spot in your home or office, this is a great Wi-Fi extender / booster. This Wi-Fi extender / booster will boost Wi-Fi signal strength in your home for all your Wi-Fi devices including dbell. Comes with outdoor bell push button (transmitter). Works with dbell video doorbell or without the dbell video doorbell.

New generation WiFi extender doorbell – fills the Wi-Fi void with a ding. Most importantly, WiFi Extender Doorbell extend Wi-Fi in your home or office extensively well.

Power supply	AC 110V to AC220V 50Hz/60Hz	12v Alkaline Battery
Wireless Range	Max 1000ft/300m in open air	Max 1000ft/300m in open air
RF Frequency	433Mhz	433Mhz
Volume level in dB	110dB Max.	—
Number of ringtones	50	—
Expandable capacity	4	4
Power consumption	Less than 0.3Watt	Less than 10mW
Waterproofing	Indoor use	IP44/IP55
Working temperature	-20°C to +50◦C	-20C° to +50◦C
Wi-fi extender	IEEE 802.11 b/g/n
Frequency	2.4-2.4835 GHz
Channel	14
Channel Bandwidth	20/40 MHz Auto
Transmission rate	11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: 300Mbps
Encryption	WPA-PSK/WPA2-PSK, WPA/WPA2
RF parameters	Output Power (Max): 50mW(17dBm) Receiver Sensitivity (Max): -96dBm
Transmit distance	50m ~ 100m
Antenna	2x 2dBi Internal Antennas

dbell WiFi extender wireless doorbell with volume control and ringtone selection. Just plug-n-play device. If you have lots of Wi-Fi dead spot in your home or office, this is a great add-on WiFi repeater. This Wi-Fi extender doorbell will boost Wi-Fi signal strength in your home for all your Wi-Fi devices including dbell live. Comes with outdoor bell push button (transmitter). Work with dbell video doorbell or without video doorbell.

How to setup WiFi extender doorbell

Setup using mobile device

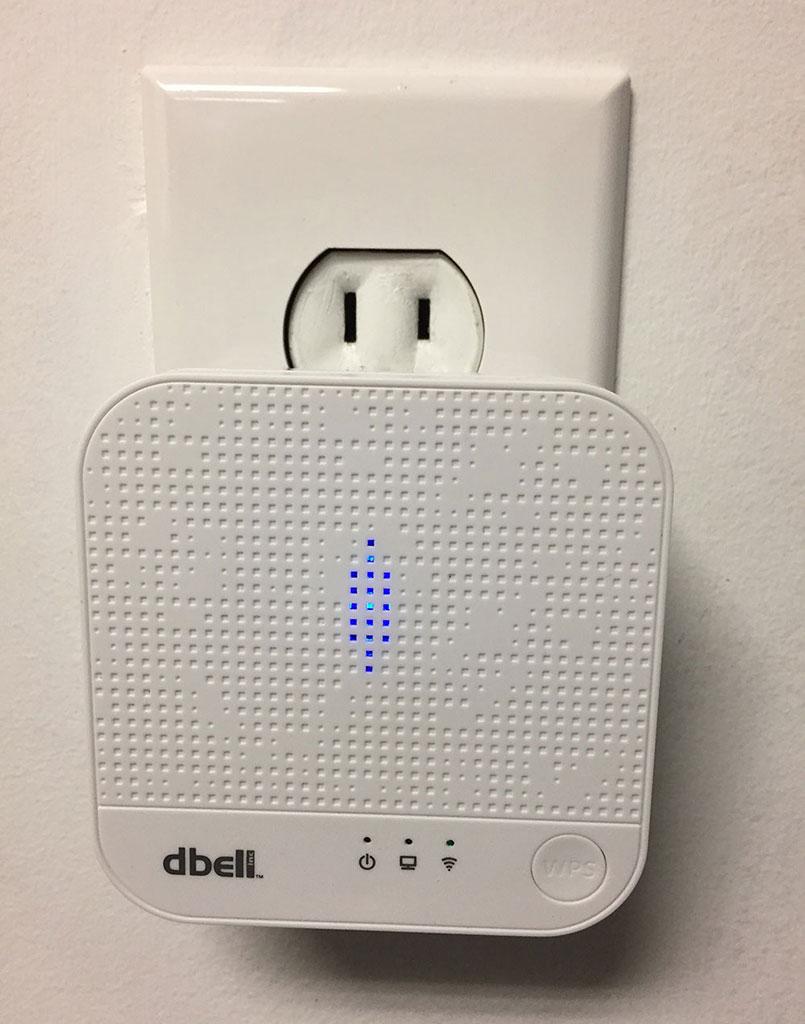

1. Plug-in dbell WiFi extender to a power outlet
2. Open your device ‘Settings’
3. Tap ‘Wi-Fi’
4. Tap ‘Mydbell’
5. Wait until your device is connected to ‘Mydbell’
6. Open a web Browser, type 192.168.1.99 in the address bar
7. dbell extender setup page opens >> Tap ‘GO’
8. Select your Wi-Fi network from the list
9. Enter your Wi-Fi password on the Password field
10. Type a new password for Wi-Fi extender or type the same password
11. Tap ‘Connect’

If the indicator Light turns Green: Congratulations!
You have successfully completed your new Wi-Fi extender setup

Setup using a Browser

Plug-in dbell WiFi range extender to a power outlet

1. Select ‘Mydbell’ as your network
2. Open a web Browser, type 192.168.1.99 in the address bar
3. Click ‘Extender Setting’
4. Select your Wi-Fi from the list
5. Type your Wi-Fi password in the ‘Password’ field
6. Enter a name in the ‘Extender SSID field’
7. Type a password for the extender or you can keep the same as your wifi password
8. Click ‘Connect’.

If the indicator Light turns Green: Congratulations!
You have successfully completed your new Wi-Fi extender setup

For more information http://support.dbell.ca/knowledge-base/wi-fi-range-extender/
